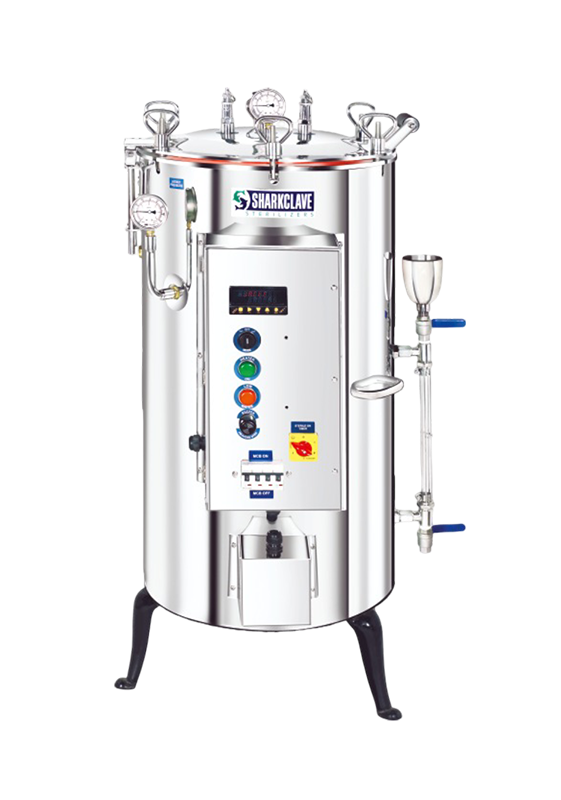

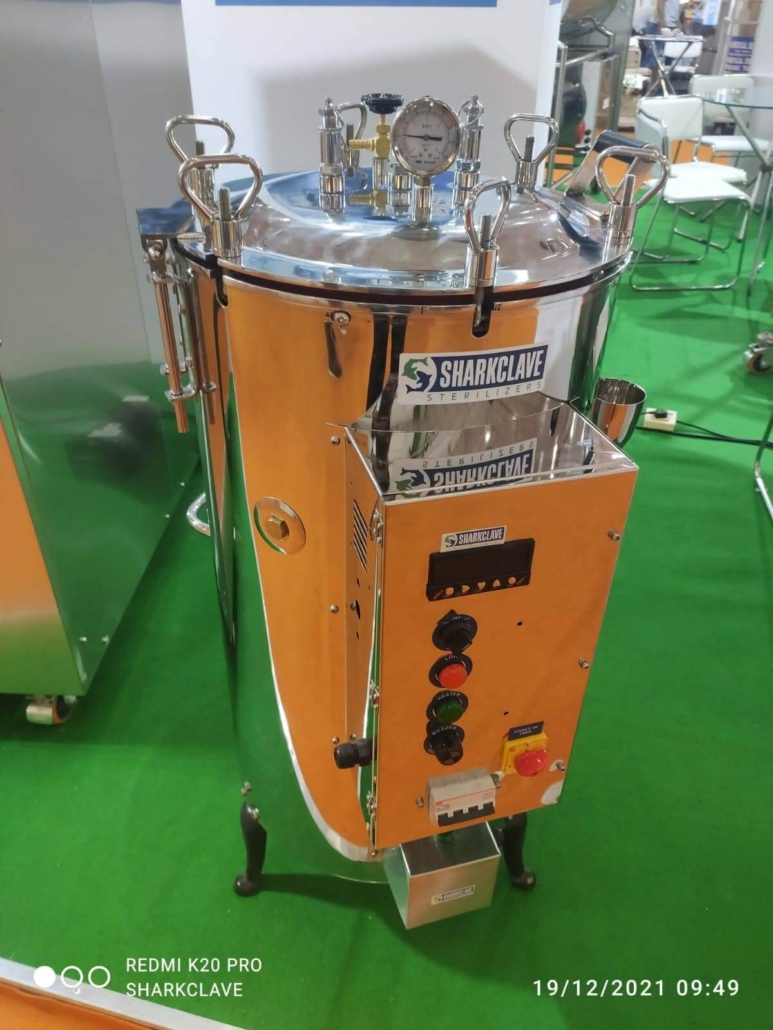

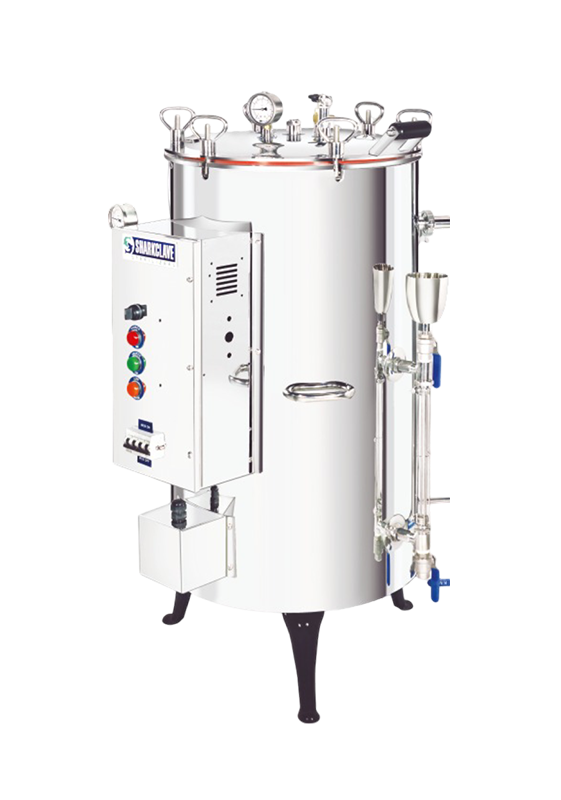

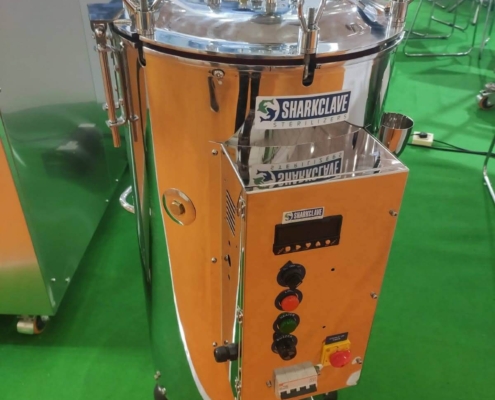

Fully Automatic Vertical Steam Sterilizer
- Triple walled unit, the sterilizer consists of a chamber with steam jacket and outer insulation cover
- Door Gasket: Expandable type Silicone rubber gasket, withstands up to 140 deg * C
- Door: Single Door hinge type with radial locking system
- Material of Construction Steam Sterilizer Chamber, Jacket, Door, Radial Locking Arm, Outer Insulation Cover, Pipelines, Steam Generator all are made out of heavy gauge SS 304/316 grade Stainless Steel
- Standard features: Solenoid valve, vacuum drying, chamber condensate line with steam trap & chuck valve, digital thermometer, dial pressure gauges for steam generator and jacket, compound gauge for chamber, sight glass, stainless steel perforated tray, expandable silicone gasket
- Working Temperature: 121 deg * C 134 deg * C
- Working Pressure: 1.2 kgf/cm2 & 2.1kgf/cm2
- Power Supply: 440 V, 3 Phase, 50 Hz AC Supply
- Safety Devices: Pressure switch, safety valves, self locking of door when chamber is under pressure, vacuum breaker, low water level cut-off
- Safety Features: Door locking facility. Low water protection system, Pressure cut off facility and other necessary safety features
- Hydrostatic Test: Hydraulically tested chamber up to 2 times the working pressure and jacket up to 2.5 times the working pressure
- Features of Automatic Sterilizer: Automatic operation by PLC based microprocessor which is incorporated with the sterilizers (SHARK make) Comes with 1210C & 1 ^ 36 * 0c program cycle Adjustable electrical selector switch provided for change of Sterile Time, Variable of Dry Time, Auto Water Filling by feed water pump machine can be run 24 * 7 Suitable alarm provided by the end of sterilization
- Alaram: Low Water, Over Temperature, Over Pressure, Low Temperature, Sterile Fail
- Standards: BIS-IS:3829 Latest Edition with ISI mark for High Speed Steam
- Sterilizers: Documentation: User manual, Warranty Certificate, Hydraulic Test Certificate, Calibration Certificate
