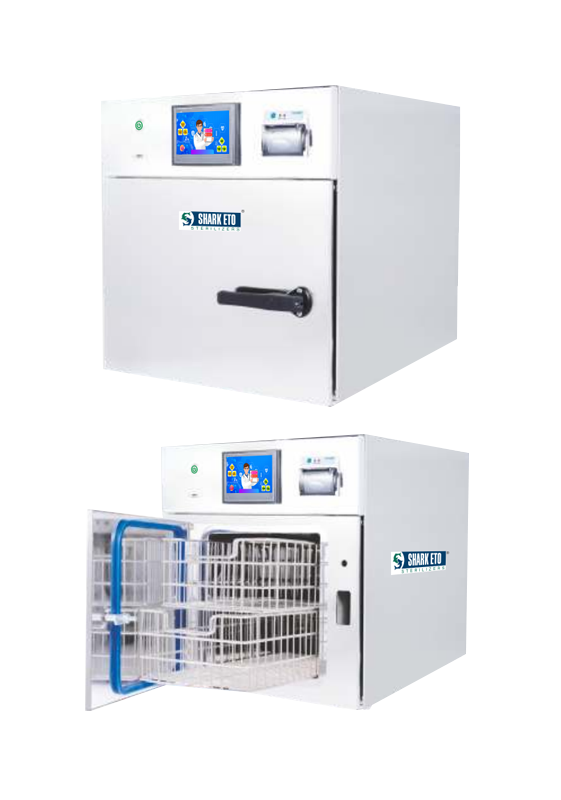

ETO Sterilizers (Table Top)

Features

  • Stainless steel inner chamber
  • Electric heating delivers equal heating throughout the inner chamber used to silicon heater
  • HMI Digital display shows working status and operating mode
  • Double configuration: Can use single filling pure epoxy ethane and epoxy ethane mixed
  • Negative pressure working system and Pressure control system maintains optimum pressure
  • The setting parameters of sterilization pressure, temperature and time and humidity can be set as per the requirement
  • PLC & HMI display with printer & memory storage function (USB)
  • Automated cartridge puncture, no manual operation at all.
  • Equipped with vacuum system, exhaust system, humidity sensor, heating system, air purification system, circulatory system and air filtration system
  • Safety features: Dual temperature protection function, Safety door interlock, automatic testing leak alarm, high temperature alarm, Fault detection alarm

Special Features

  • USB The integrated front USB port allows cycle data to be stored digitally making record keeping simple and efficient (Optional).
  • Printing units comes with an integrated thermal printer.

Standard Accessory

  • 10 units of Ethylene Oxide Cartridges
  • 2 Size packing cover rolls

No Need of Compressor

Compressor not required to avoid tedious maintenance because unhealthy compressed air may damage performance of equipment.

Oil Free System

Technical Specification

MODEL NAME VOLUME (Cub.Ft) POWER

(KW)

 CHAMBER SIZE

(HXWXD)

 CYCLE TEMP & TIME
SHARKETO-40L 1.5 2.5 Kw 1.0 x 1.0 x 1.5 ft Warm Cycle: 55° C approximately 7-8 hours.

Cold Cycle: 37° C approximately 8-10 hours.
SHARKETO-54L 2.0 3.5 Kw 1.0 x 1.0 x 3.0 ft Warm Cycle: 55° C approximately 7-8 hours.

Cold Cycle: 37° C approximately 8-10 hours.

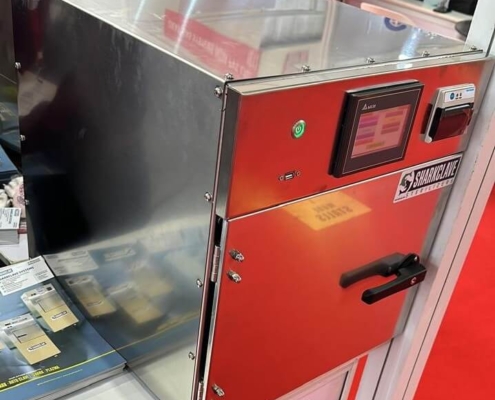

ETO Sterilizers (Table Top) Gallery
